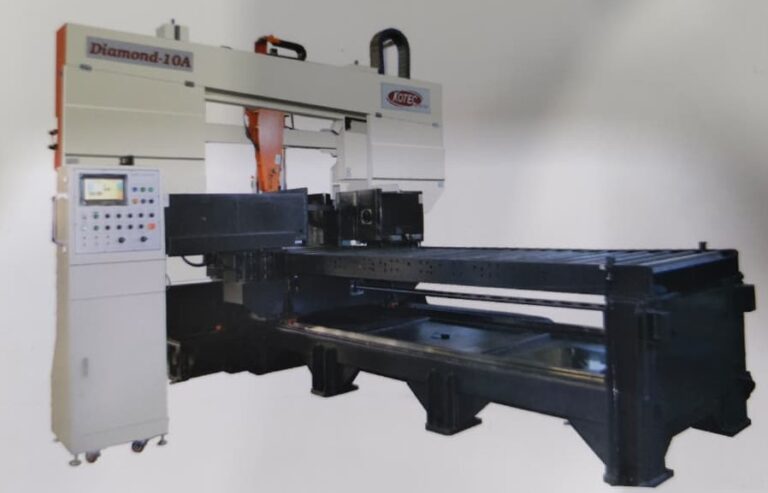

Band Sawing Machine (Bundle)
Features:
Specialized design for easy cutting of bundles and raw materials.
Automatic cutting speed control system and cutting end point.
Linear Motion (LM) guide for stable saw blade feed.
Improved cutting speed controlled by a servo motor.
Specifications
| Model | DIAMOND-10A (Bundle) | DIAMOND-7A |
|---|---|---|
| Capacity | 90° 1,000 × 1,000 mm |
90° 700 × 500 mm |
| Blade Speed | 20-90 m/min | 20-90 m/min |
| Saw Blade Size | 67 × 1.6 × 9,920 mm | 54 × 1.6 × 7,150 mm |
| Feeding Stroke | IN: 3,000 mm / OUT: 3,000 mm | IN: 800 mm / OUT: 200 mm |
| Dimensions (W×L×H) | 4,520 × 1,440 × 3,420 mm | 3,475 × 2,255 × 2,640 mm |
| Weight | 8,000 kg | 7,000 kg |
* NOTE: Specifications are subject to change for quality improvement.
