MULTI BEAM DRILLING & SAWING MACHINE

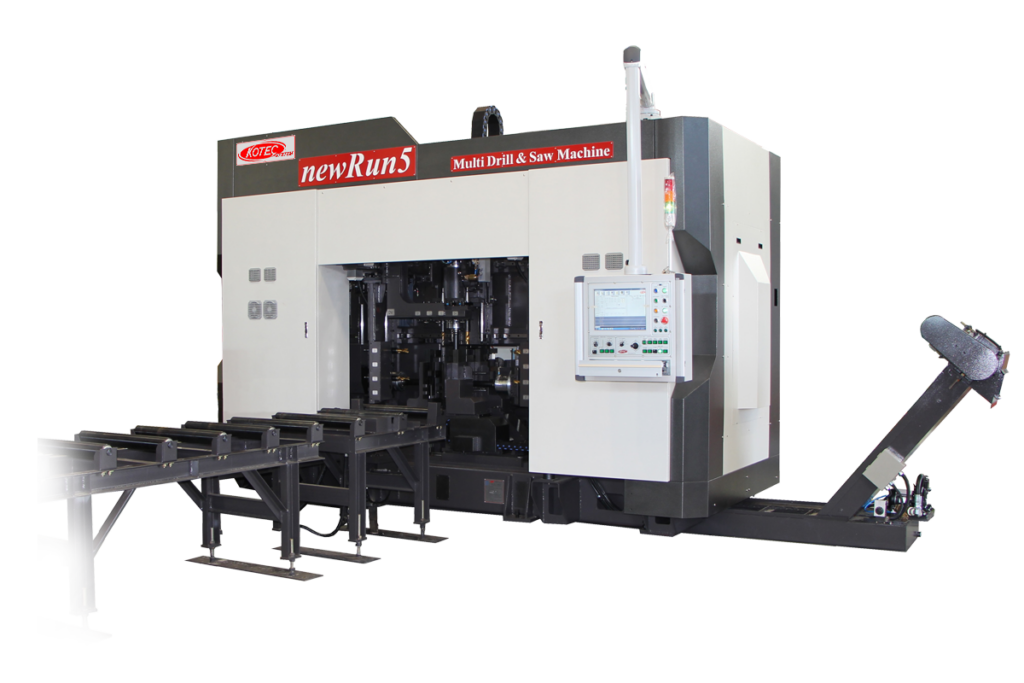

newRun5 Multi Drill & Saw Machine
Features
Capable of hole processing on three axis and cutting for various structural steel shapes.
Saves workspace and allows one operator to control drilling and cutting simultaneously.
Equipped with a high-power motor for high-speed hole processing.
High-speed cutting control using a servo motor.
Fast and precise material feeding operations using a carriage.
Adopts an easy and simple method for processing data input. (Option: NC1, DXF file conversion program)
Specifications
| MODEL | newRun 5 |
|---|---|
| Processing Capacity | |
| H | 100×50 – 500×300 mm |
| n | 75×40 – 380×100 mm |
| L | 65×65 – 300×300 mm |
| O | 50×50 – 300×300 mm |
| Carriage Stroke | 13 m (Standard) |
| Drill Bit Capacity | Oil Hole, Tungsten Carbide Drill: Ø12–Ø32 |
| Sawing Capacity | 500×300 mm |
| Blade Size (W×L) | 41×1.3×6,000 mm |
| Dimension (W×L×H) | 4,250×1,950×2,900 mm (without Carriage) |
| Weight | 7,600 kg |
