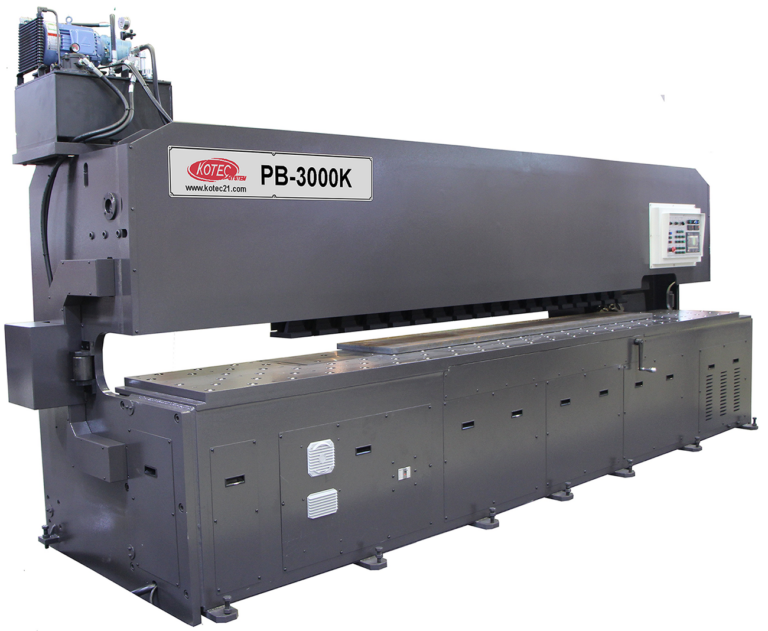

PLATE PUNCHING MACHINE
Features
Carbide drill can be used with high-powered motor
ATC (Auto Tool Change)
Can be installed on the same rail with the plasma cutting machine
M/S Windows based OS, file upload with USB memory stick
Auto nesting program
Specifications
| MODEL | Twin–X (Drilling) |
|---|---|
| Machine structure | Gantry traveling |
| Controller | CNC |
| Max. processing capacity (W×T) | 3,000×45mm (Length can be customized) |
| Max. drill bit capacity | Tungsten carbide drill (oil hole type): Ø12~Ø40mm |
| Drill spindle motor | Built-in spindle motor (BT–50) |
| ATC (Auto Tool Change System) | 6SET |
| Work Table | Wood support |
| Dimension (W×L×H) | 5,850×2,300×2,550mm (Machine) |
| Weight | 7,100kg |
