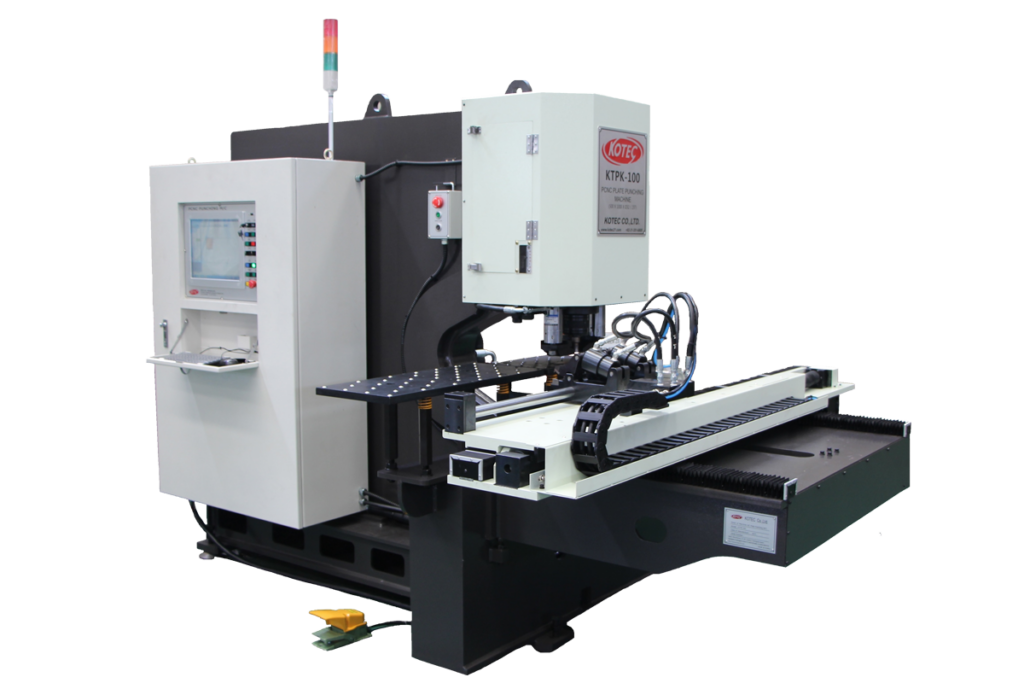

PLATE PUNCHING MACHINE
Features
Max plate size 1,000 × 500 × 25t
Powerful punching action with a big cylinder
CAD file interface, DXF file
MS Windows based OS, file upload with USB memory
Specifications
| MODEL | KTPK-100 | KTPK-100AT |
|---|---|---|
| Max. pressing power | 100 ton | |
| Max. Processing capacity | Min. 100×100×6t / Max. 1,000×500×25t (L×W×T) | |
| Max. Punching capacity | 25t × Ø32 | |
| Tool change | N/A | 3 set (2 punches + marking tool or 3 punches) |
| Processing data entry | CAD file interface (18 patterns) | |
| Dimension (W×L×H) | 2,200 × 2,900 × 2,000 mm | 2,200 × 2,800 × 1,900 mm |
| Weight | 4,500 kg | 5,400 kg |
