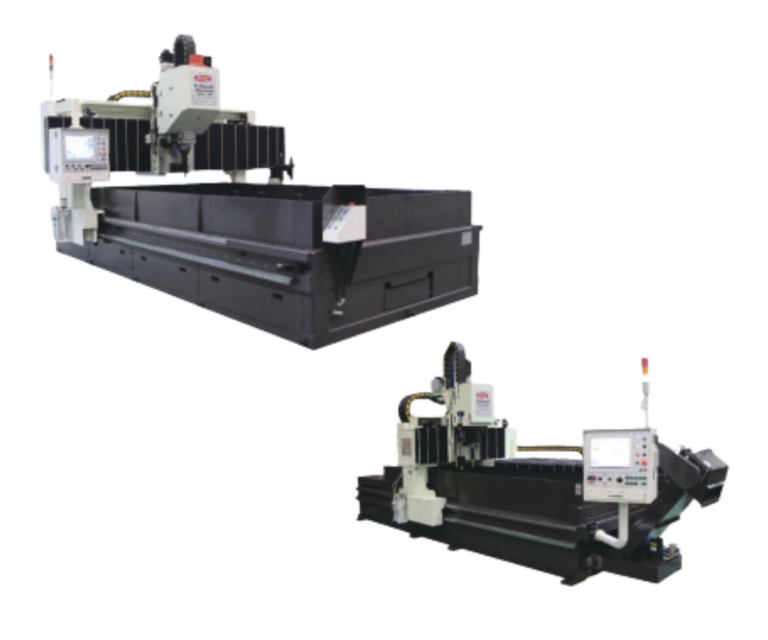

Plate Super Drilling Machine
Features
- The machine can be equipped with a carbide drill with a high-powered motor.
- It supports CAD file interface, DXF file compatibility.
- Compatible with MS Windows-based OS and file uploads via USB memory.
- Has an ATC (Auto Tool Change) option.
Specifications
| Model | D-MAX50 | |||||
|---|---|---|---|---|---|---|
| Travelling Type | Semi Gantry Type | Gantry Type | ||||
| Max. Processing Capacity | 600 × 3,000 mm | 2,000 × 1,000 mm | 3,000 × 1,000 mm | 4,000 × 1,500 mm | 6,300 × 2,500 mm | |
| Max. Drill Bit Capacity | Ø40 | Carbide drill: Ø50 / Taper drill: Ø50 | ||||
| Processing Data Entry | CAD File Interface (18 Patterns) | |||||
| Tool Change | N/A | Manual Type / ATC (Auto Tool Change) | ||||
| Work Clamp Stroke | 85 mm (20 ~ 105 mm) | |||||
| Work Clamp | 12 Sets | 12 Sets | 12 Sets | 16 Sets | 20 Sets | |
| Work Point | 4 Point | |||||
| Dimensions (W × L × H) | 2,200 × 5,770 (6,100) × 2,500 | 2,250 × 3,700 (4,600) × 2,750 | 2,300 × 5,200 (6,500) × 2,750 | 3,300 × 5,200 (6,500) × 2,750 | 4,250 × 8,050 (8,550) × 2,750 | |
| Weight | 4,600 kg | 5,400 kg | 6,200 kg | 8,200 kg | 11,500 kg | |
